HR 46026

type SM · family ASA6 · 21.8 kV maximum anode voltage · L° deflection · 386 g

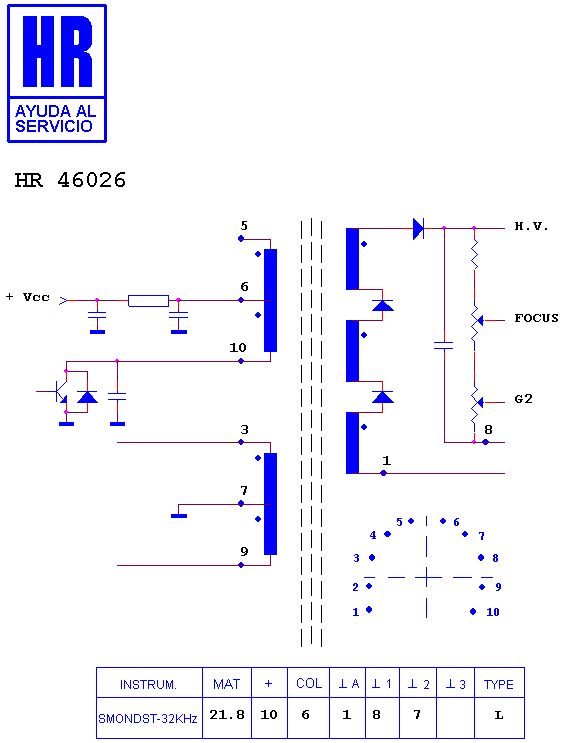

Schematic diagram for HR 46026
schematic (recovered)

Manufacturer equivalents (5)

FB 3084 · FEC 009 · FEC 009-1230 · MAT 33454 · TRNS FB 3084

Fitted to (4)

AMDEK 722 · AMDEK MONITOR · AMSTRAD COMPUTER MONITOR · AMSTRAD PC 14 HRCD

Search this part in the full database
