HR 46015

type SM · family ASA6 · 4 kV maximum anode voltage · L° deflection · 376 g

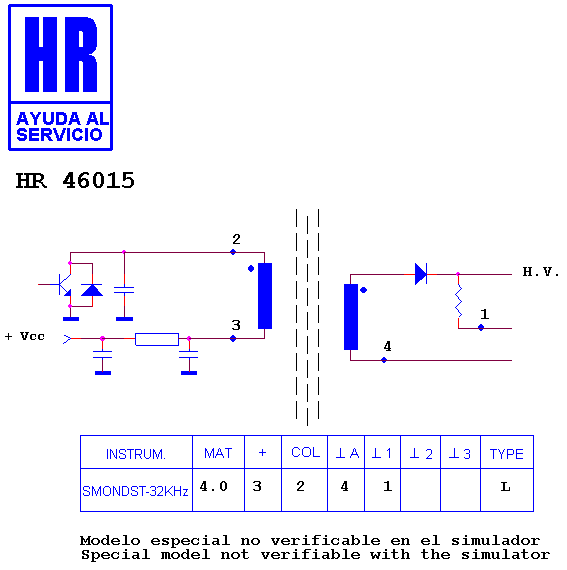

Schematic diagram for HR 46015
schematic (recovered)

Manufacturer equivalents (3)

7334031500509 · MAT 33049 · ME/0330-49

Fitted to (3)

IBM 5150 · IBM 5151 · IBM MONITOR

Search this part in the full database
