HR 46014

type SM · family ASA6 · 28.8 kV maximum anode voltage · L° deflection · 376 g

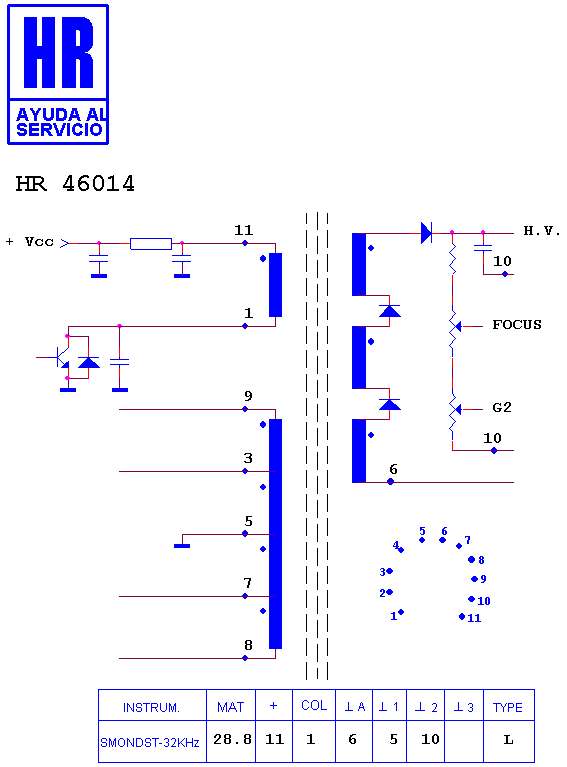

Schematic diagram for HR 46014
schematic (recovered)

Manufacturer equivalents (5)

7334021400506 · CF 51 A · LCE CF 51 A · MAT 33421 · ME/0334-21
