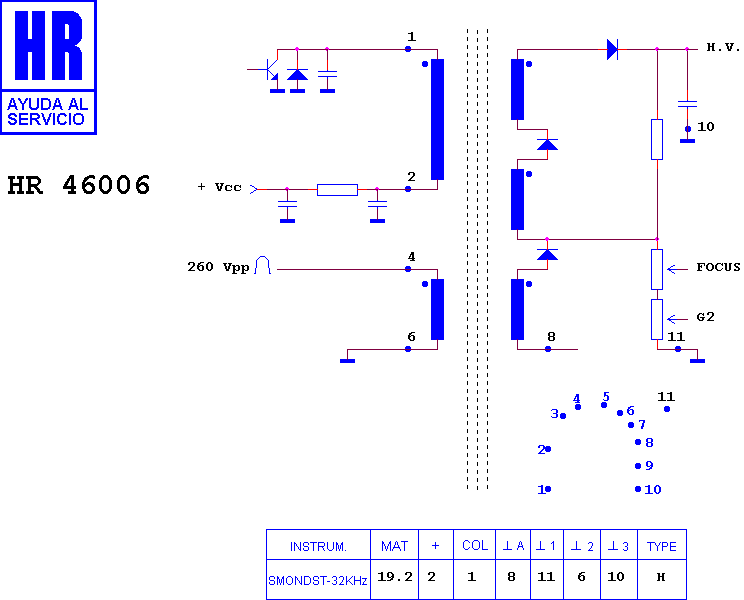

HR 46006

type SM · family 1VCP · 19.2 kV maximum anode voltage · H° deflection · 389 g

Manufacturer equivalents (6)

02859 128 510 · 2859 128 510 · A 9 M 308 · FCO 1412 E 03 · MAT 33455 · ME/0334-55

Accessories (1)

Parts the catalogue lists alongside this one. They are separate items, not part of the transformer.

• HR 16525 — Screen (G2) control

Fitted to (10)

DELL MONITOR · DELL NOVC 1 · DELL NOVC 2 · MEMOREX TELEX MONITOR · MEMOREX TELEX V 061 · PACKARD BELL MONITOR · PACKARD BELL PB 8531 VG · PACKARD BELL PB 8541 VG · SAMSUNG CQ 4551 · SAMSUNG MONITOR
