HR 46001

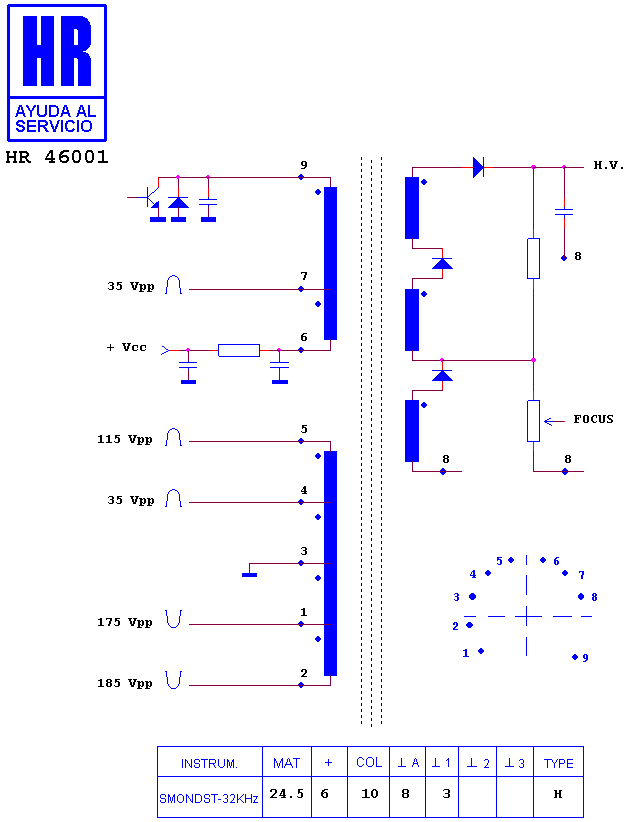

Schematic diagram for HR 46001
schematic (recovered)

Manufacturer equivalents (11)

16-26946-01 · 16-26946-02 · FCS 230 A 1 · FDA 004-1230 · FDA 004-1230-A · FEA 004 · FEA 004 A · FEA 004-1230 · FEA 004-1230-A · FS 230-009 · MAT33096

Fitted to (6)

CHUNTEX MONITOR · CHUNTEX VT 340 · DEC MONITOR · DEC VT 340 · DIGITAL MONITOR · DIGITAL VT 340
