HR 42112

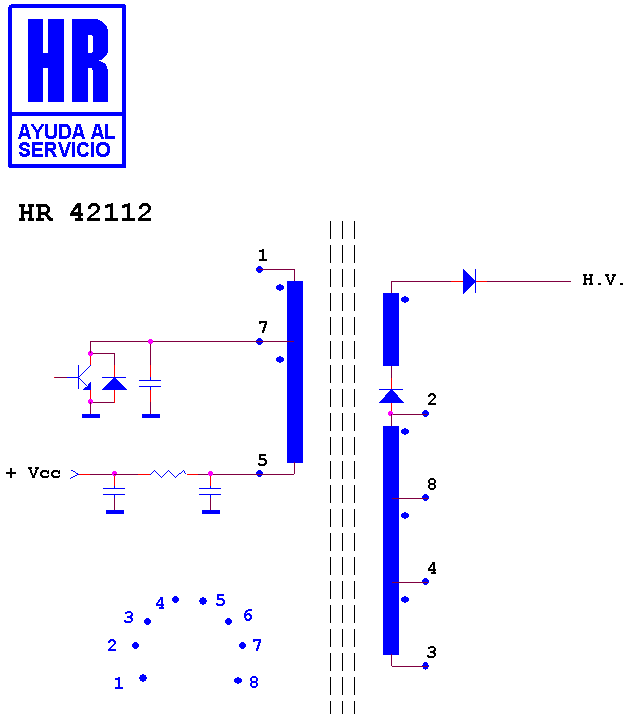

Schematic diagram for HR 42112
schematic (recovered)

Manufacturer equivalents (9)

1-482-058 · 1-482-058-00 · 1-482-058-01 · 1-482-058-02 · 1-482-058-03 · MAT 33013 · ME033013 · TMF 2500B-1-482-058 · TWMF 2246

Fitted to (11)

ADI DM 3112 · ADI MONITOR · ESPRIT 220/3 N 1 · ESPRIT MONITOR · ESPRIT OPUS 22 E · ESPRIT OPUS 220/3 · OPUS 3 N 1 · OPUS 4 · OPUS MONITOR · QUIMAX DM 3114 · QUIMAX MONITOR

Search this part in the full database
