HR 42094

type SM · family ASA2 · 386 g

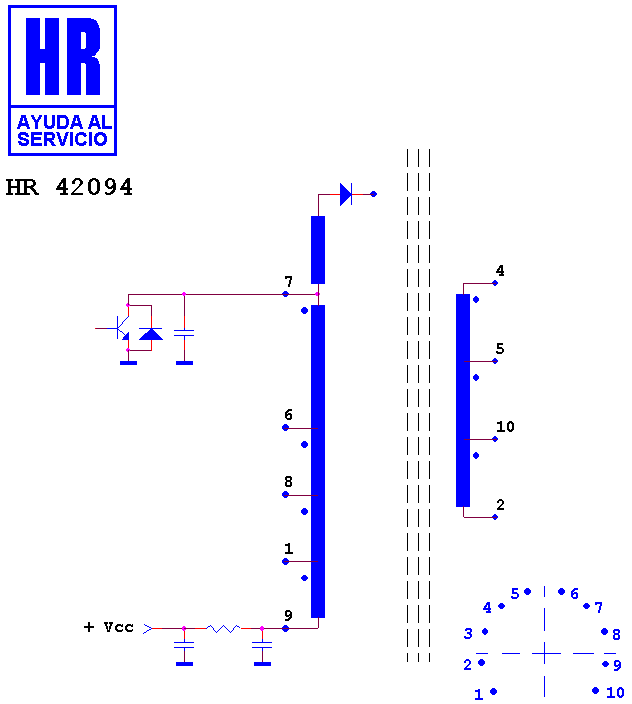

Schematic diagram for HR 42094 — schematic (recovered)

Manufacturer equivalents (2)

154 173 D · MSH-1ADN12

Search this part in the full database
