HR 42037

type SM · family ASA2 · 186 g

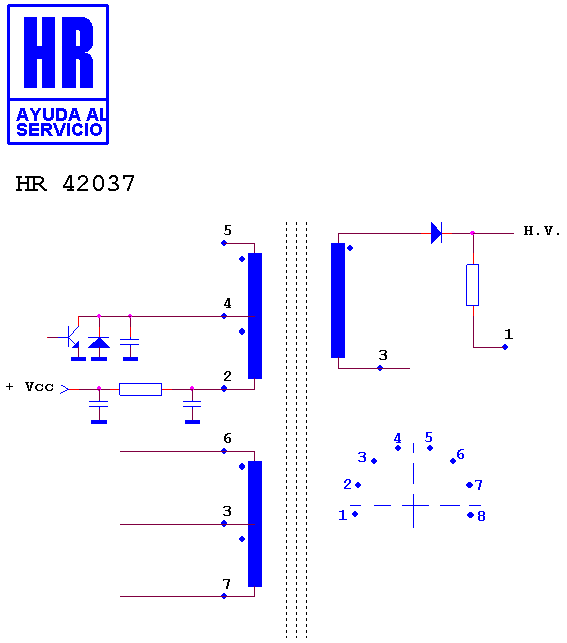

Schematic diagram for HR 42037
schematic (recovered)

Manufacturer equivalents (4)

FMD 1235 AL · FMD 1235 BL · MAT 33047 · ME/0330-47

Fitted to (4)

IBM 5151 · IBM MONITOR · SAMSUNG MD 1252 G · SAMSUNG MONITOR
