HR 3774

type MC · family 7C3R · 350 g

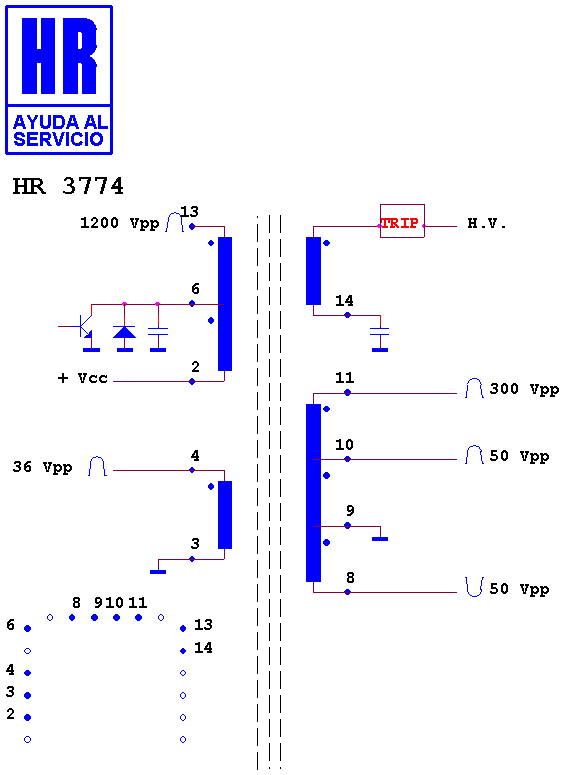

Schematic diagram for HR 3774 — schematic (recovered)

Manufacturer equivalents (3)

7520 123 500 · FAT 3774 · ME/5986-00

Search this part in the full database
