HR 3683

type MC · family 7C2R · 252 g

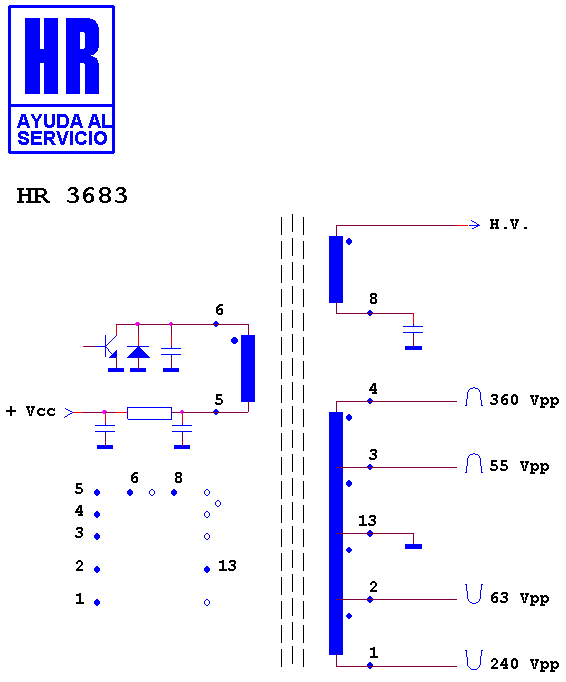

Schematic diagram for HR 3683
schematic (recovered)

Manufacturer equivalents (5)

29 8837 · 309 311 927 · 534 TX 0205 · AT 90/7.7-23/753 · FAT 3683

Fitted to (9)

TELEFUNKEN 2309 · TELEFUNKEN 3309 · TELEFUNKEN 3359 · TELEFUNKEN 3409 · TELEFUNKEN CHASIS 914 · TELEFUNKEN CHASIS 914 2 · TELEFUNKEN CHASIS 914 2 SEC. · TELEFUNKEN CHASIS 914 XN · TELEFUNKEN COLORIMAGE
