HR 3642

type MC · family 7C2R · 281 g

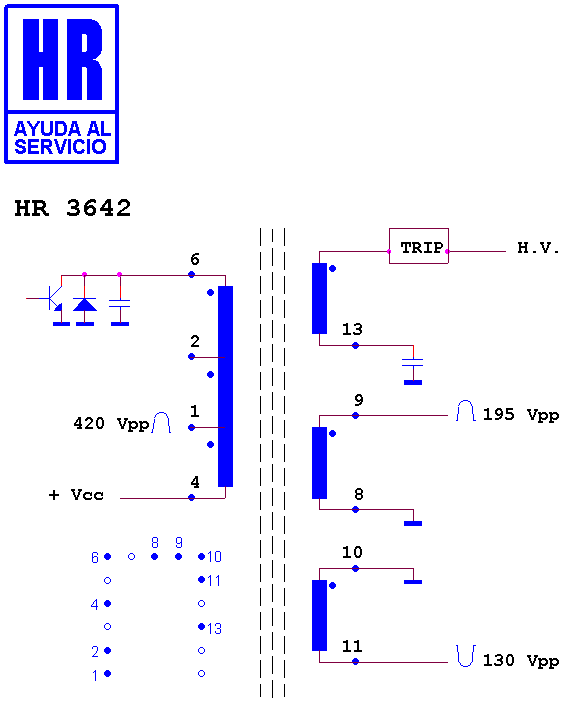

Schematic diagram for HR 3642
schematic (recovered)

Manufacturer equivalents (3)

4802 140 17072 · EAF 1176 · FAT 3642

Fitted to (3)

PYE CT 30 · PYE T 29 · PYE T 30
