HR 3618

type MC · family 7C0R · 200 g

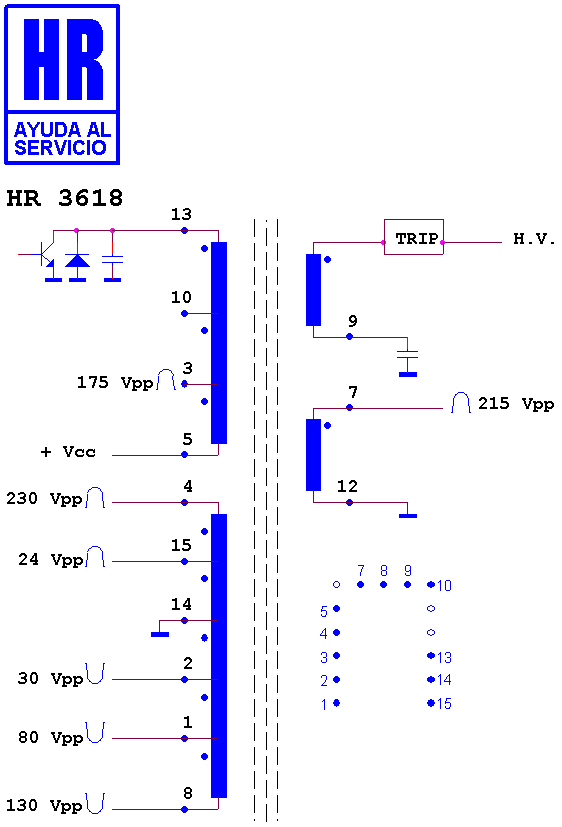

Schematic diagram for HR 3618 — schematic (recovered)

Manufacturer equivalents (1)

TFAT 1109-F030-47

Search this part in the full database
