HR 3617

type MC · family 7C1R · 185 g

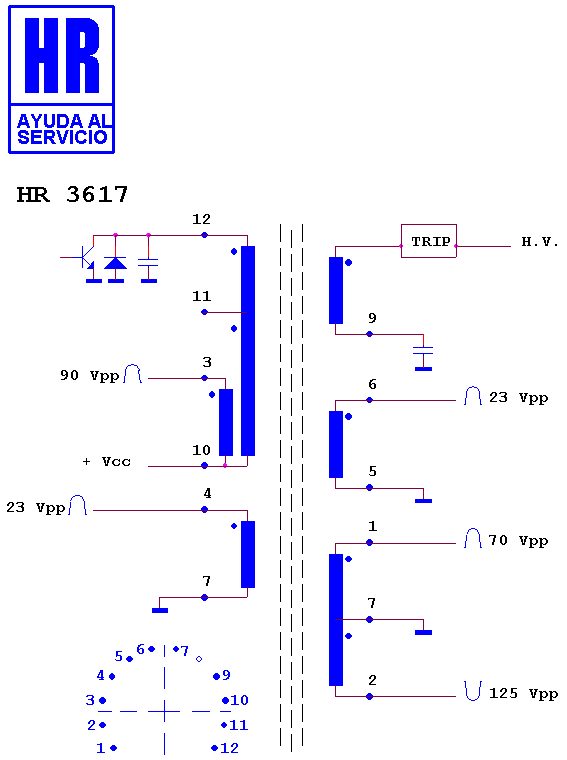

Schematic diagram for HR 3617 — schematic (recovered)

Manufacturer equivalents (1)

TFAT 102-37

Search this part in the full database
