HR 3611

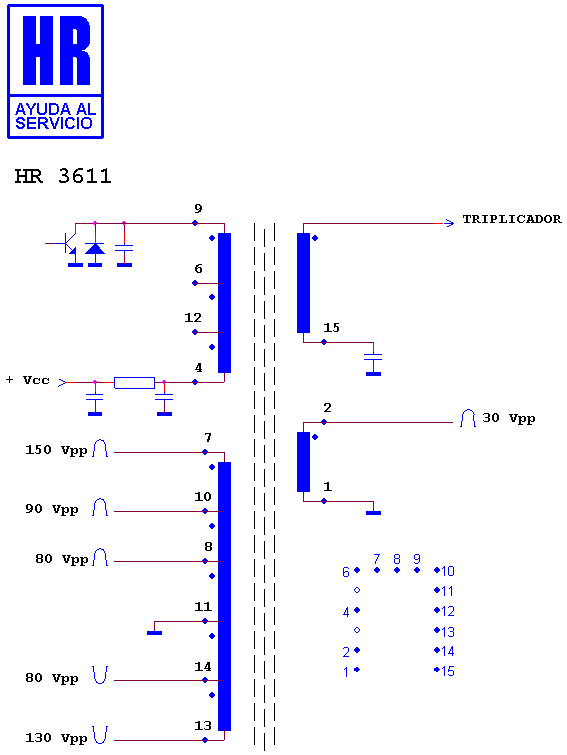

Schematic diagram for HR 3611
schematic (recovered)

Manufacturer equivalents (5)

0.094 · 2621 0069 · 55 300 1020 · ME/5017-00 · TRU 47/25-02

Fitted to (4)

AUTOVOX 1613 · AUTOVOX 1683 · AUTOVOX 2083 · AUTOVOX CTV
