HR 3608

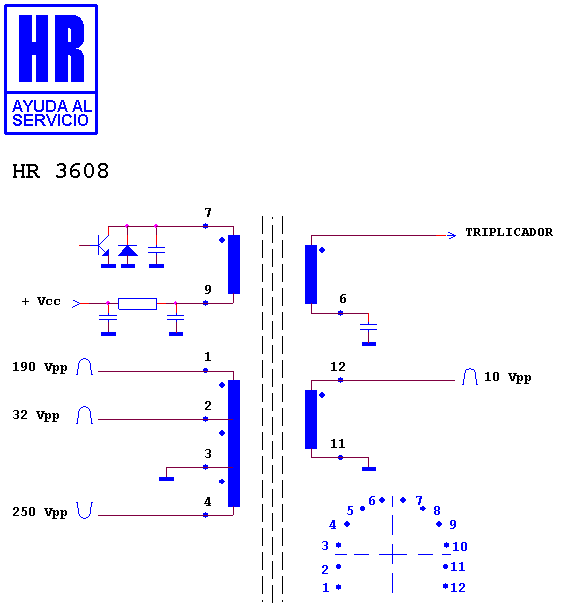

Schematic diagram for HR 3608 — schematic (recovered)

Manufacturer equivalents (3)

F 0234 · FAT 3713 · ME/6108-00

Search this part in the full database

HR Diemen is a trademark of Efiter S.L. This archive is not affiliated with, endorsed by, or connected to Efiter or HR Diemen.
