HR 3607

type MC · family 7C2E · 285 g

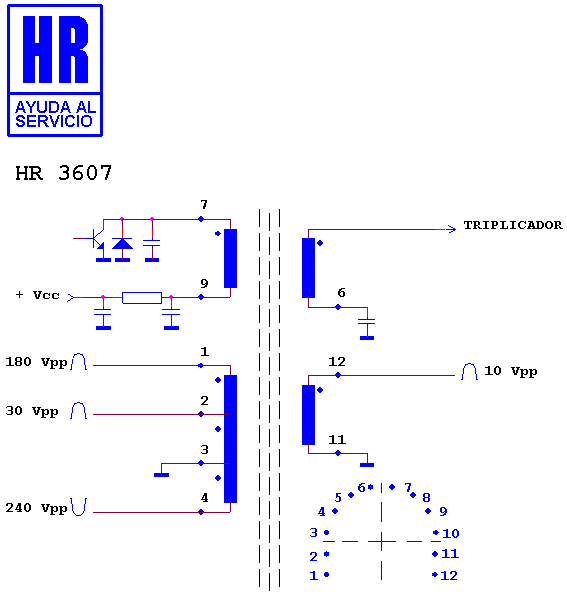

Schematic diagram for HR 3607
schematic (recovered)

Manufacturer equivalents (3)

F 0227 · FAT 3712 · ME/6107-00

Fitted to (3)

SANYO CTP 7605 · SANYO CTP 7605 A · SANYO CTP 7608
