HR 3556

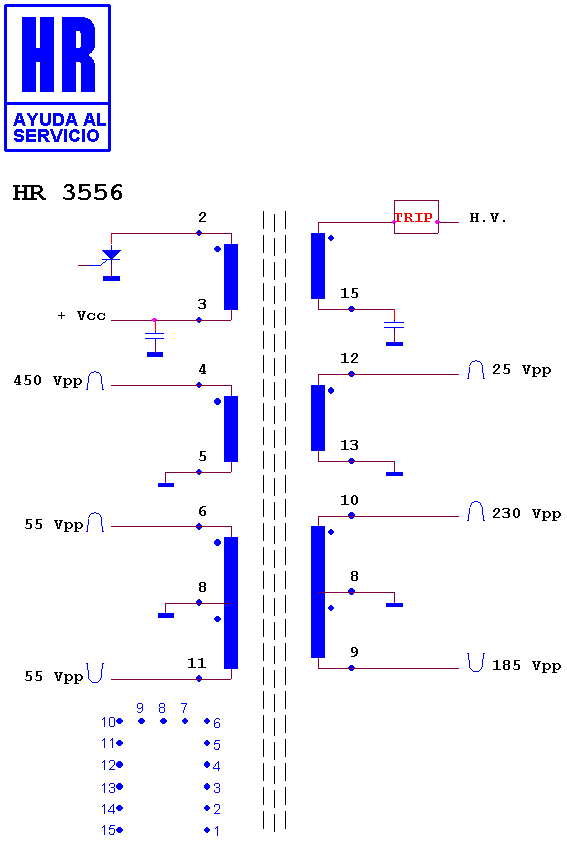

Schematic diagram for HR 3556 — schematic (recovered)

Manufacturer equivalents (1)

3556.00

Search this part in the full database
