HR 3528

type MC · family 7C2R · 265 g

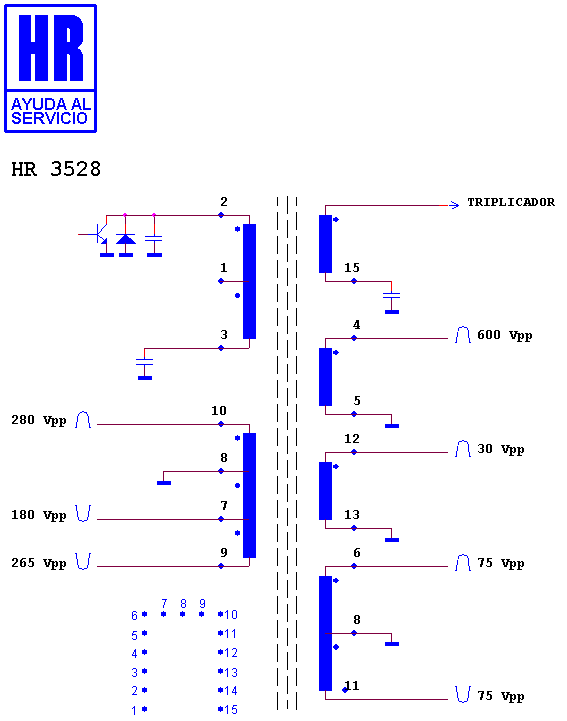

Schematic diagram for HR 3528
schematic (recovered)

Manufacturer equivalents (7)

3528.00 · 3528.01 · 3528.02 · 3528.03 · 3528.04 · 534 TX 0020 · FAT 3777

Fitted to (1)

THOMSON CHASIS B 12
