HR 3512

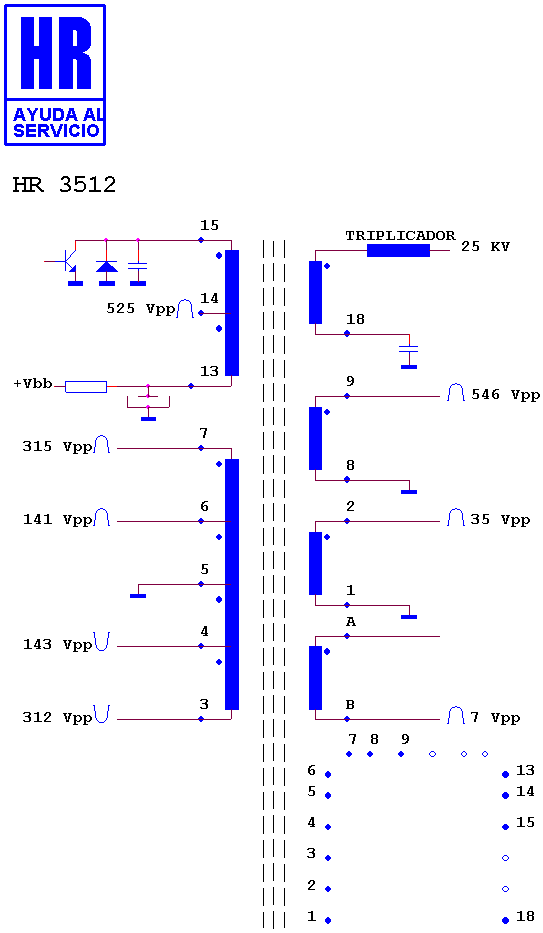

Schematic diagram for HR 3512
schematic (recovered)

Manufacturer equivalents (5)

0.149 · 52 399 0331 · 52 399 0451 · 52 560 1251 · ME/5222-00

Fitted to (7)

BRION VEGA 2252 · BRION VEGA 2652 · BRION VEGA 2653 · BRION VEGA 2653/16 · BRION VEGA COSMO 1 · BRION VEGA TEOREMA · BRION VEGA TESI 1
