HR 3510

type MC · family 7C2R · 270 g

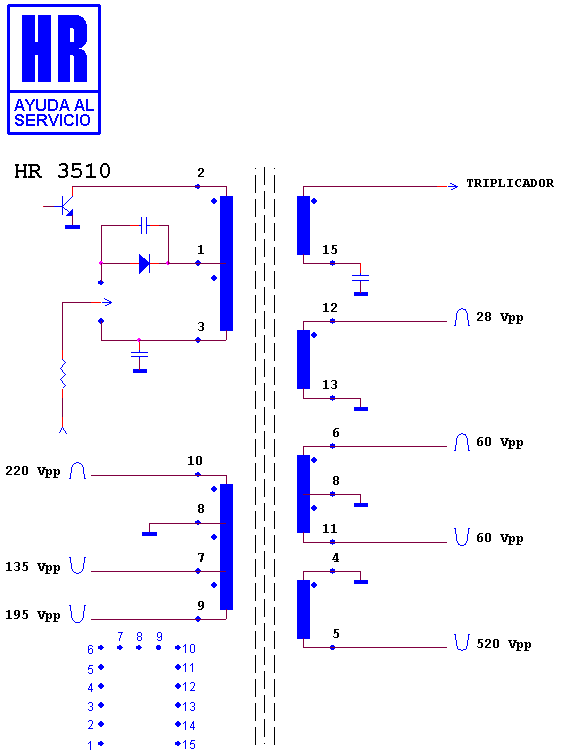

Schematic diagram for HR 3510
schematic (recovered)

Manufacturer equivalents (4)

3510.00 · 3510.01 · 534 TX 0014 · 534 TX 0017

Fitted to (2)

THOMSON CHASIS B 12 · THOMSON CHASIS B 9
