HR 3504

type MC · family 7C2R · 260 g

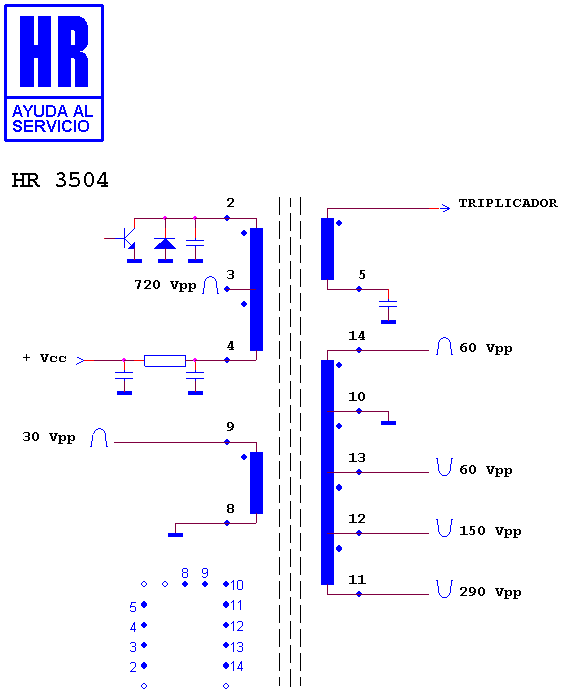

Schematic diagram for HR 3504
schematic (recovered)

Manufacturer equivalents (5)

0.031 · 10.5041 · 2900 · 345020 · ME/5241-00

Fitted to (8)

GALAXIS CONSOLTRONIC · GALAXIS GALAXCOLOR · GALAXIS GALAXINO · GALAXIS GALAXOR · GALAXIS PANORTRONIC · GALAXIS PONORTRONIC · GALAXIS TELECINE 22 · GALAXIS TELECINE 27

Search this part in the full database
