HR 3502

type MC · family 7C3R · 332 g

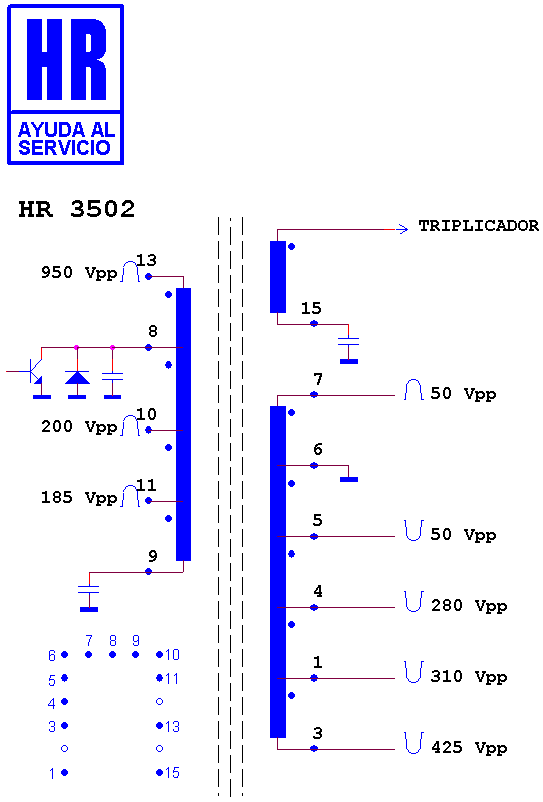

Schematic diagram for HR 3502
schematic (recovered)

Manufacturer equivalents (6)

0.162 · 245.26935.01 · 2660 · 2693501 · 52 970 0240 · ME/5261-00

Fitted to (3)

VOXSON 6631 · VOXSON 6632 · VOXSON 6726
