HR 2290 T1

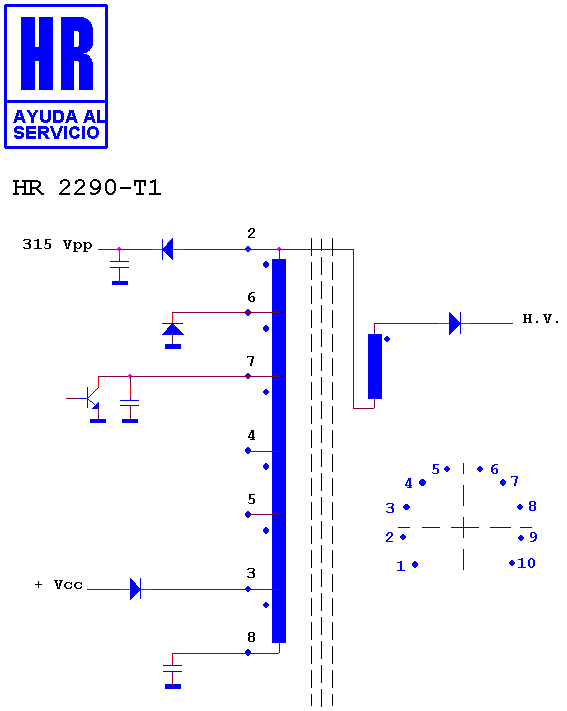

Schematic diagram for HR 2290 T1
schematic

Manufacturer equivalents (9)

061-15100-001 · 43-64-0702 · 43-64-0702L · BSH12-01 · FBM 003 · HRF 1060 · IP 12001 · MC-FBM 003 · MDF 10/358

Fitted to (8)

ULTRA KT 1045 · ULTRA MONITOR · ULTRAVISION BMV 1015 · VGART 1438 · VGART MONITOR · VGART VG 1438 · YOKO B/W TV/AM-FM STEREO RC 4.5" · YOKO NR F-4
