HR 2277 T14S

type BN · family 7B4E · 265 g

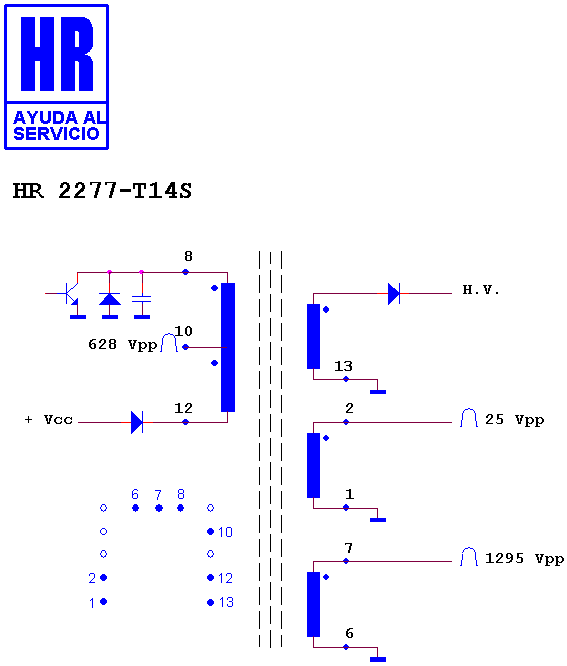

Schematic diagram for HR 2277 T14S — schematic

Schematic diagram for HR 2277 T14S — schematic

Manufacturer equivalents (2)

3111 108 34040 · AT 2102/06 C

Search this part in the full database
