HR 2230

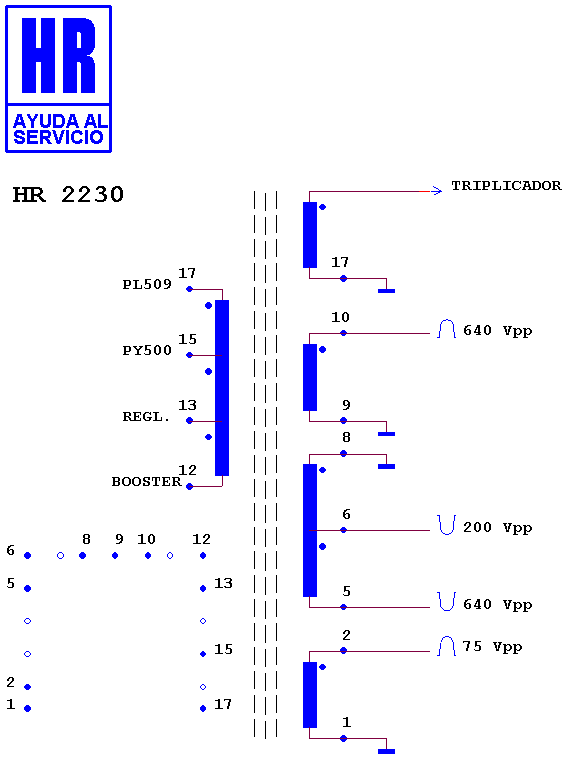

Schematic diagram for HR 2230 — schematic

Manufacturer equivalents (1)

85-0335-4

Fitted to (3)

DECCA COLOUR 2030 · DECCA COLOUR 2230 · DECCA COLOUR 2630

Search this part in the full database
