HR 2169

type MC · family 7C2R · 255 g

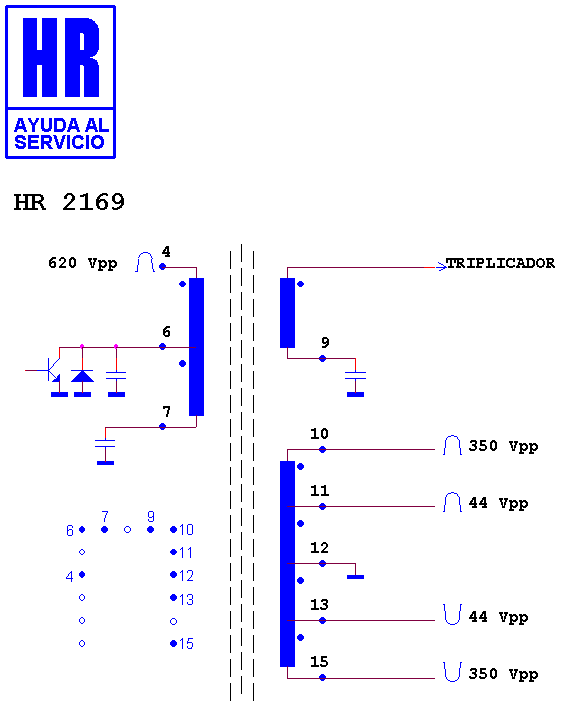

Schematic diagram for HR 2169
schematic

Manufacturer equivalents (7)

0.002 · 8 667 210 069 · 8 667 210 141 · 926 391 4 · FAT 210/069 · FAT 3530 · ME/5327-00

Fitted to (6)

LUXOR 4751 · LUXOR TV · QUELLE 015.600 · QUELLE 015.600.0 · QUELLE 030.204.2 · QUELLE FT 7161
