HR 2143

type MC · family 7C2R · 255 g

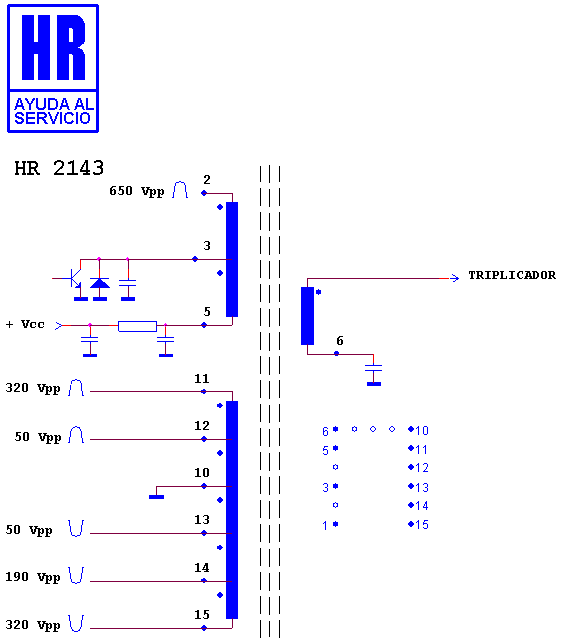

Schematic diagram for HR 2143 — schematic

Manufacturer equivalents (5)

0.125 · 8 667 210 243 · FAT 210/243 · FAT 3533 · FM 0205

Search this part in the full database
