HR 2052

type MC · family 7C0R · 188 g

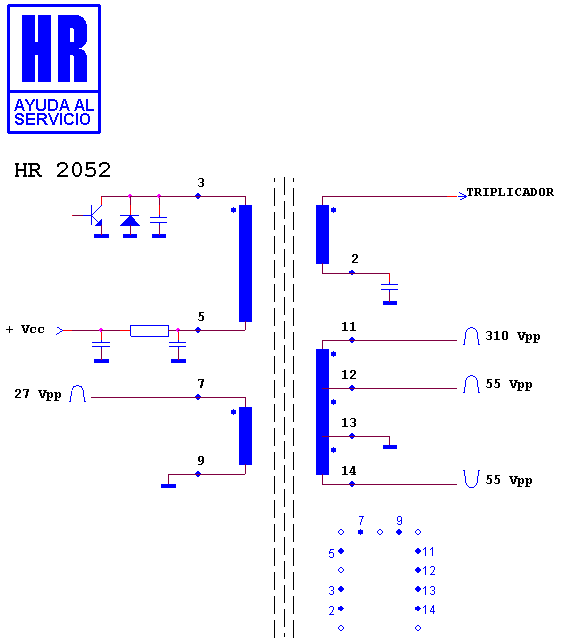

Schematic diagram for HR 2052 — schematic

Manufacturer equivalents (1)

10.5050

Search this part in the full database
