HR 2049

type MC · family 7C3I · 377 g

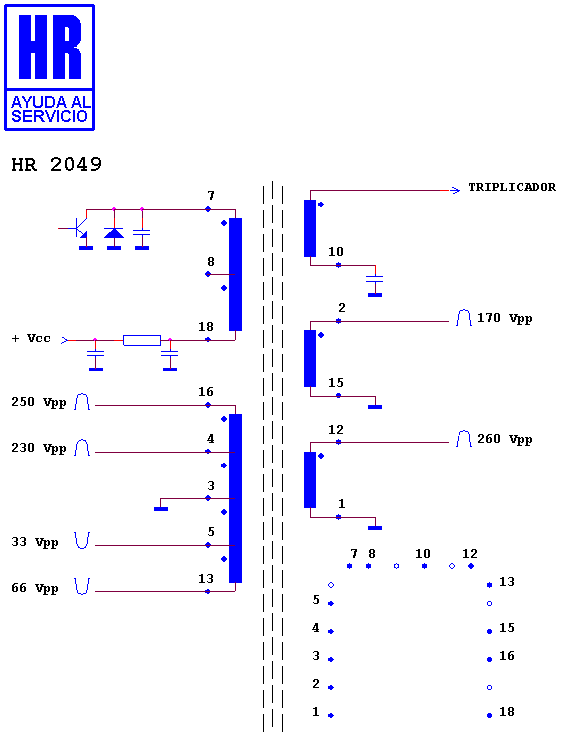

Schematic diagram for HR 2049 — schematic

Manufacturer equivalents (1)

8222 280 05627

Search this part in the full database

HR Diemen is a trademark of Efiter S.L. This archive is not affiliated with, endorsed by, or connected to Efiter or HR Diemen.
