HR 19043

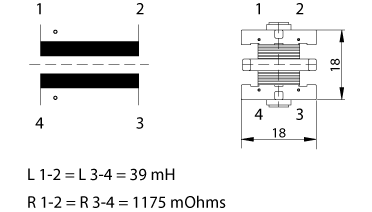

Schematic diagram for HR 19043
schematic (archived)

Manufacturer equivalents (7)

009-04118/1.0 · 009-04118/3.6 · 31025010 · 32010020 · F 0111 BM · LQ 0002 CIA · RCILF0111BMZZ

Notes

FILTRO RED 2 X 39MH 0.8A 250V

Fitted to (5)

SHARP 54 GS 61 SN · SHARP 70 ES 03 S · SHARP 70 ES 04 S · SHARP 70 ES 05 FP · SHARP 70 GS 61 SN
