HR 19004

type FR · family 3R4 · 70 g

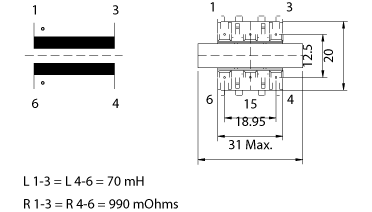

Schematic diagram for HR 19004 — schematic (archived)

Manufacturer equivalents (1)

416 865

Notes

MAINS FILTER 2 X 70MH 1A 250V
