HR 1603

type MC · family 7C2I · 272 g

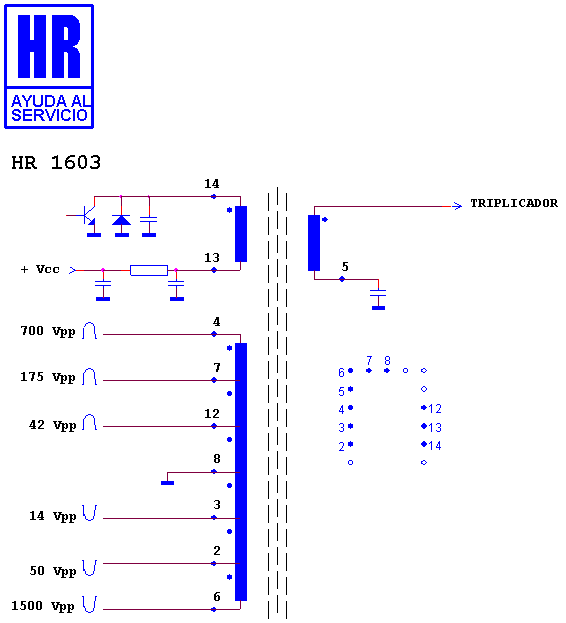

Schematic diagram for HR 1603 — schematic

Manufacturer equivalents (2)

AT/16/1003 · ME/5226-00

Fitted to (1)

ATLANTIC RAIMBOW 2 T

Search this part in the full database
