HR 15020

type BO · family 6R4 · 82 g

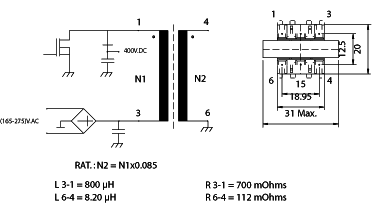

Schematic diagram for HR 15020
schematic (archived)

Manufacturer equivalents (2)

RTRNZ0586BMZZ · Z 0586 BM

Notes

BOOSTER P.F.C. COIL 145W (165-275)V.AC / 400V.DC
