HR 15018

type BO · family 6R4 · 86 g

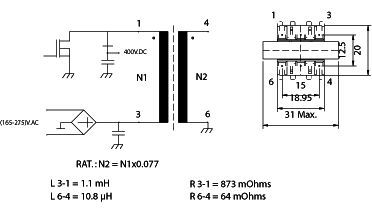

Schematic diagram for HR 15018
schematic (archived)

Manufacturer equivalents (2)

RTRNZ0583BMZZ · Z 0583 BM

Notes

BOOSTER P.F.C. COIL 125W (165-275)V.AC / 400V.DC

Fitted to (2)

SHARP 54 GS 61 SN · SHARP 70 GS 61 SN
