HR 1155

type MC · family 7C2R · 270 g

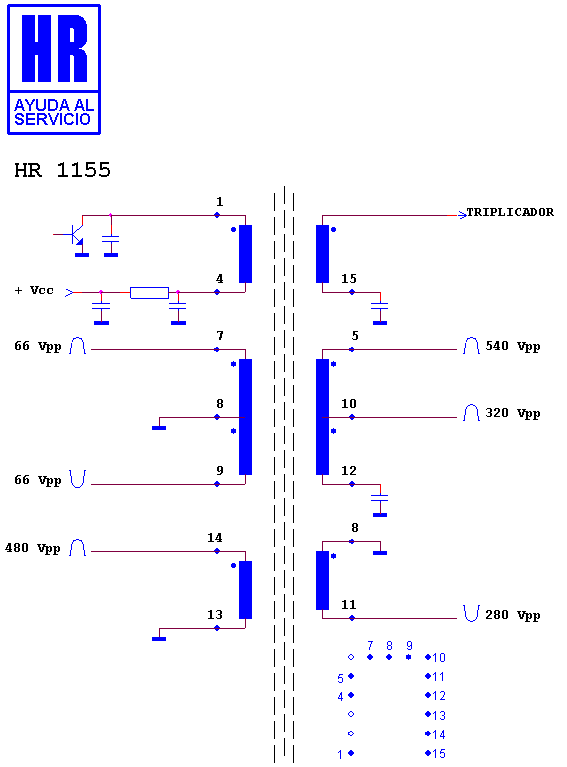

Schematic diagram for HR 1155 — schematic

Manufacturer equivalents (1)

TFAT 1109-550-57
