HR 1154

type MC · family 7C2R · 289 g

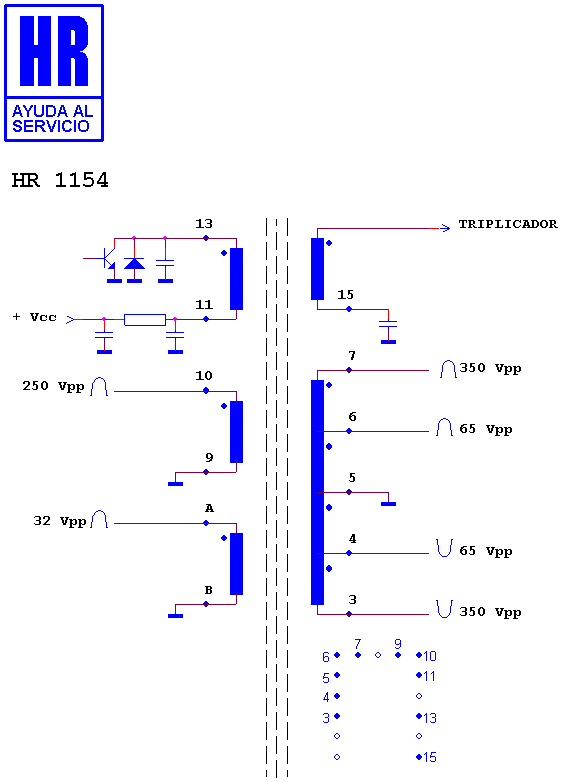

Schematic diagram for HR 1154
schematic

Manufacturer equivalents (5)

525.233 · FAT 109/54 · FAT 3479 · TFAT 1109-54 · TFAT 1109-540-57

Fitted to (2)

TANDBERG CTV 2-4-123 · TANDBERG CTV 4
