HR 1145

type MC · family 7C3I · 386 g

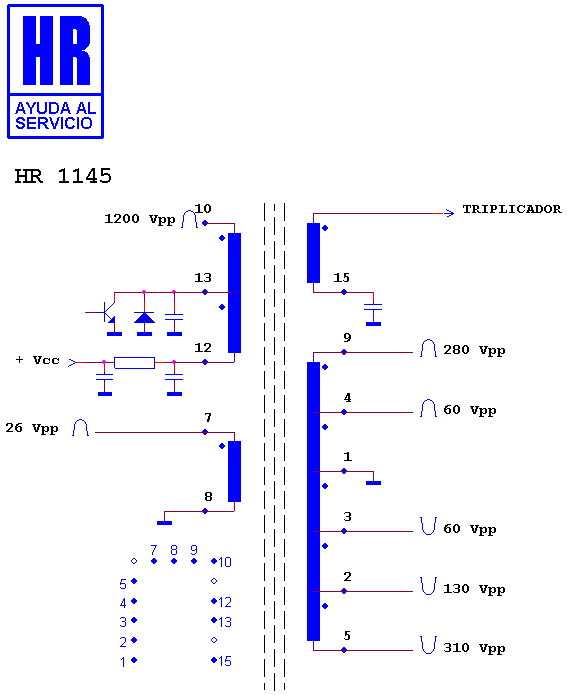

Schematic diagram for HR 1145
schematic

Manufacturer equivalents (4)

FAT 109/45 · FAT 3517 · ME/6067-00 · TFAT 1109-450-59

Fitted to (1)

NORDMENDE CHASIS F 6 II

Search this part in the full database
