HR 1132

type MC · family 7C0R · 193 g

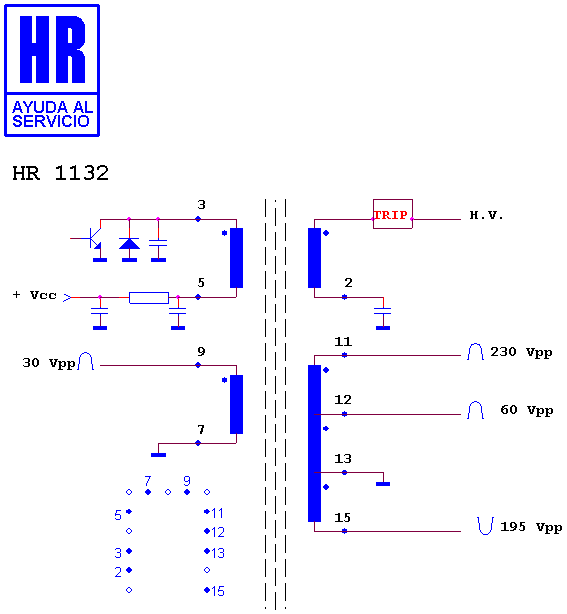

Schematic diagram for HR 1132 — schematic

Manufacturer equivalents (1)

TFAT 909-F322-47

Search this part in the full database
