HR 090

type BN · family 7B2I · 356 g

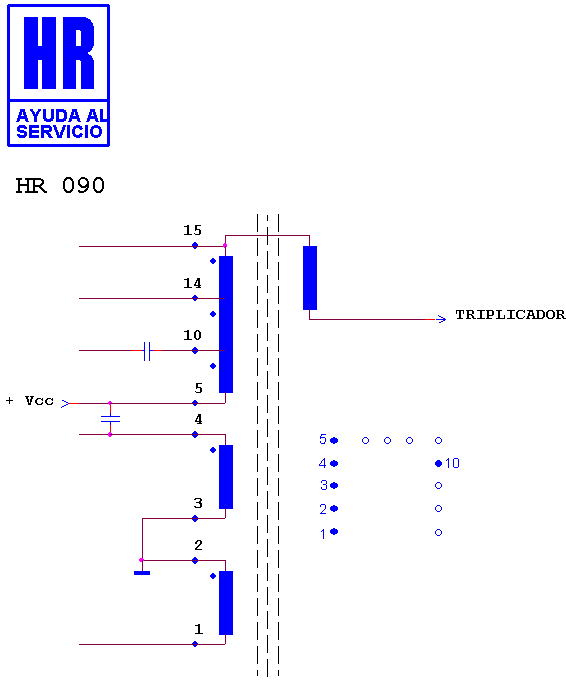

Schematic diagram for HR 090 — schematic (recovered)

Manufacturer equivalents (3)

10.0090 · 319 900 170 · 319 900 179

Search this part in the full database
