HR 061

type BN · family 7B2I · 330 g

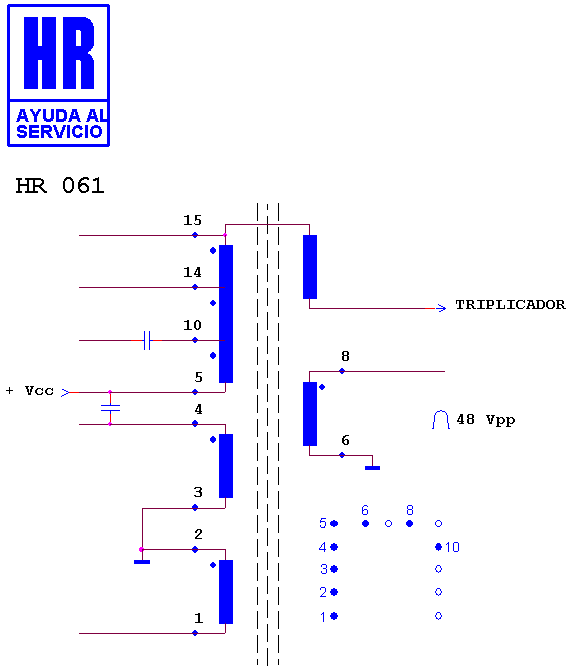

Schematic diagram for HR 061 — schematic (recovered)

Manufacturer equivalents (1)

EAT/E 7061

Search this part in the full database

HR Diemen is a trademark of Efiter S.L. This archive is not affiliated with, endorsed by, or connected to Efiter or HR Diemen.
